1605 1610 2005 2505 2510 3205 3210 4005 4010 5050 CNC Linear Guide Ball Screw

Brand Name : HAWKKING

Model Number : SFS(single nut),SFD(double nuts)

Certification : CE，ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : Negotiation

Packaging Details : Standard export carton packing, wooden case, foam board inside for protection.

Applicable Industries : Manufacturing Plant, Other

Weight (KG) : 2

Core Components : Bearing

Length : Customized

Structure : Ball Screw + Nut + Steel Ball

Product name : Ball Lead Screw

Application : Precision part, cnc machining parts

Material : Chrome steel, stainless steel

Contact Now

1605 1610 2005 2505 2510 3205 3210 4005 4010 5050 CNC Linear Guide Ball Screw

What is the difference between a lead screw and a ball screw?


The basic difference between lead screws vs ball screws is that a ball screw uses ball bearings to eliminate the friction between the nut and screw and lead screws do not. ... Lead screws use deeper helical threads and a mating nut, which is usually made of a polymer composite or bronze.
High speed feeding:
High positioning accuracy: The accuracy is up to the requirement of JIS C3. Acceleration: Over 1.0 g (9.8 m/sec2) to avoid time consuming between accelerating and decelerating.

Heavy stiffness:
Optimized screw profile and structure design. Heavy load: Multi-load ball distribution design. Low vibration noise: Using the best slender ratio and high-speed circulation to lower noise.

Constant temperature:
The efficient heat transfer can restrain the thermal deformation and improve the stability. Environment friendly: Optional
self-lubricant function can reduce the lubricant consumption and to diminish the environment pollution caused by lubricant discard. It also solves the problem that lubricant thickens unevenly by deformation of oil film in spiral path.

SFS TYPE

1605 1610 2005 2505 2510 3205 3210 4005 4010 5050 CNC Linear Guide Ball Screw

Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
01205-B1 12 5 2.5 24 40 10 31 32 30 4 5 - 2.8X1 661 1316 19
01210-B1 10 2.5 24 40 10 48.5 32 30 4 5 - 2.8X1 642 1287 19
01605-C1 15 5 2. 778 28 48 10 38 38 40 5 5 M6 3.8X1 1112 2507 30
01610-B1 10 2. 778 28 48 10 47 38 40 5 5 M6 2.8X1 839 1821 23
01616-A1 16 2. 778 28 48 10 45 38 40 5 5 M6 1.8X1 552 1137 14
01616-B1 16 2. 778 28 48 10 61 38 40 5 5 M6 2.8X1 808 1769 22
01620-A1 20 2. 778 28 48 10 57 38 40 5 5 M6 1.8X1 554 1170 14
02005-C1 20 5 3. 175 36 58 10 40 47 44 6 6 M6 3.8X1 1484 3681 37
02006-D1 6 3. 175 36 58 10 50 47 44 6 6 M6 4.8X1 1811 4644 47
02008-D1 8 3. 175 36 58 10 60 47 44 6 6 M6 4.8X1 1863 4861 50
02010-C1 10 3. 175 36 58 10 60 47 44 6 6 M6 3.8X1 1516 3833 40
02020-A1 20 3. 175 36 58 10 57 47 44 6 6 M6 1.8X1 764 1758 19
02020-B1 20 3. 175 36 58 10 77 47 44 6 6 M6 2.8X1 1118 2734 29
02505-C1 25 5 3.175 40 62 10 40 51 48 6 6 M6 3.8X1 1650 4658 43
02506-D1 6 3.175 40 62 10 50 51 48 6 6 M6 4.8X1 2015 5879 55
02508-D1 8 3.175 40 62 10 60 51 48 6 6 M6 4.8X1 2009 5867 56
02510-C1 10 3.175 40 62 12 62 51 48 6 6 M6 3.8X1 1638 4633 45
02520-C1 20 3. 969 40 62 12 80 51 48 6 6 M6 2.8X1 1430 2803 35
02525-A1 25 3.175 40 62 12 70 51 48 6 6 M6 1.8X1 843 2199 22
02525-B1 25 3.175 40 62 12 95 51 48 6 6 M6 2.8X1 1232 3421 34
02505-C1 32 5 3. 175 50 80 12 42 65 62 9 M6 3.8X1 1839 6026 51
03206-D1 6 3. 175 50 80 12 51 65 62 9 M6 4.8X1 2247 7608 65

Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
03208-D1 31 8 3.969 50 80 12 62 65 62 9 M6 4.8X1 3015 9181 68
03210-C1 10 3. 969 50 80 13 62 65 62 9 M6 3.8X1 2460 7255 55
03220-B1 20 3. 969 50 80 12 80 65 62 9 M6 2.8X1 1907 5482 43
03232-A1 32 3. 969 50 80 13 84 65 62 9 M6 1.8X1 1257 3426 27
03232-B1 32 3. 969 50 80 13 116 65 62 9 M6 2.8X1 1838 5329 42
04005-C1 40 5 3.175 63 93 15 45 78 70 9 M8 3.8X1 2018 7589 60
04006-D1 6 3.175 63 93 14 50 78 70 9 M6 4.8X1 2467 9583 77
04008-D1 38 8 3. 969 63 93 14 61 78 70 9 M6 4.8X1 3327 11491 81
04010-C1 10 6. 350 63 93 14 63 78 70 9 M8 3.8X1 5035 13943 67
04020-B1 20 6. 350 63 93 14 82 78 70 9 M8 2.8X1 3959 10715 54
04040-A1 40 6. 350 63 93 15 105 78 70 9 M8 1.8X1 2585 6648 34
04040-B1 40 6. 350 63 93 15 145 78 70 9 M8 2.8X1 3780 10341 52
05005-C1 50 5 3.175 75 110 15 45 93 85 11 M8 3.8X1 2207 9542 68
05010-C1 48 10 6. 350 75 110 18 68 93 85 11 M8 3.8X1 5638 17852 79
05012-C1 12 6. 350 75 110 18 75 93 85 11 M8 3.8X1 5632 17836 81
05020-C1 20 6. 350 75 110 18 108 93 85 11 M8 3.8X1 5749 18485 87
05050-A1 50 6. 350 75 110 18 125 93 85 11 M8 1.8X1 2946 8749 42
05050-B1 50 6. 350 75 110 18 175 93 85 11 M8 2.8X1 4308 13610 65
06310-C1 61 10 6. 350 90 125 18 70 108 95 11 M8 3.8X1 6343 23308 94
06316-C1 16 6. 350 90 125 18 95 108 95 11 M8 3.8X1 6327 23262 100
06320-C1 20 7.144 95 135 20 116 115 100 13.5 M8 3.8X1 7493 26424 105
00810-C1 77 10 6. 350 105 145 20 70 125 110 13.5 M8 3.8X1 6980 29563 105
00820-C1 20 9. 525 125 165 25 120 145 130 13.5 M8 3.8X1 12145 43598 128
10020-C1 96 20 12.7 150 202 30 124 176 155 17.5 M8 3.8X1 19633 70408 152

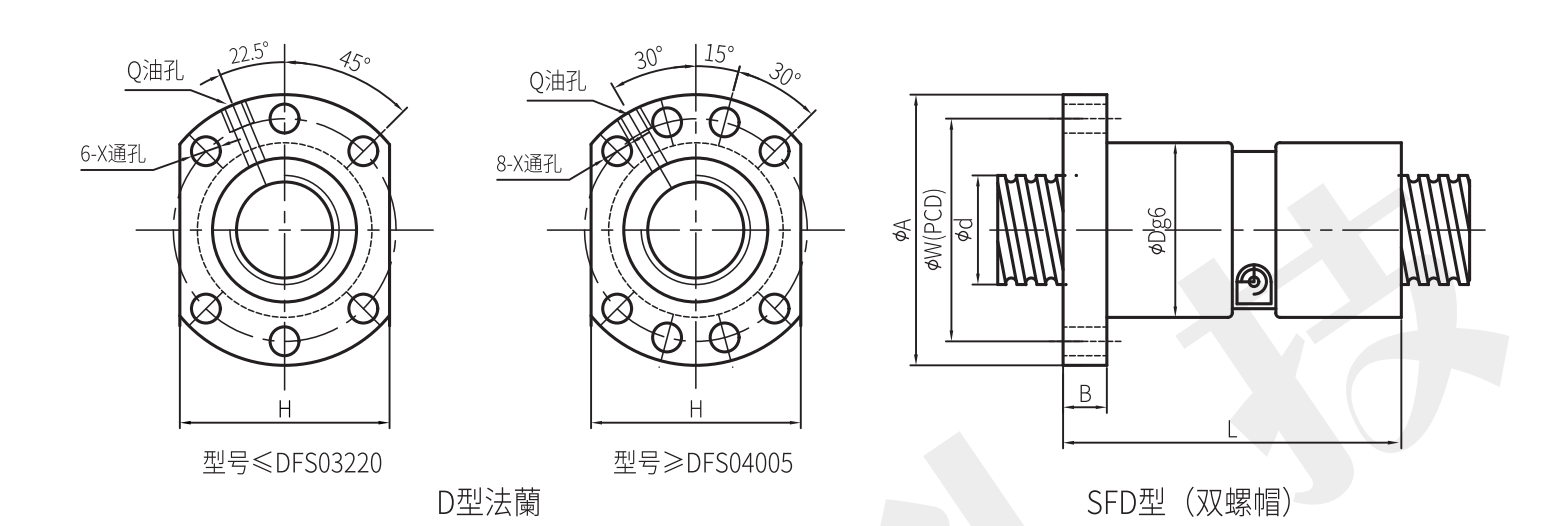

SFD TYPE

1605 1610 2005 2505 2510 3205 3210 4005 4010 5050 CNC Linear Guide Ball Screw

Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
01605-B1 16 5 2. 778 28 48 10 73 38 40 5.5 M6 3.8x1 1112 2507 41
01610-B1 10 2. 778 28 48 10 97 38 40 5.5 M6 2. 8x1 839 1821 31
02005-C1 20 5 3.175 36 58 10 75 47 44 6.6 M6 3. 8x1 1484 3681 50
02006-D1 6 3.175 36 58 10 98 47 44 6.6 M6 4. 8x1 1811 4644 63
02008-D1 8 3.175 36 58 10 116 47 44 6.6 M6 4. 8x1 1863 4861 66
02010-C1 10 3.175 36 58 10 120 47 44 6.6 M6 3. 8x1 1516 3833 53
02505-C1 25 5 3. 175 40 62 10 75 51 48 6.6 M6 3. 8x1 1650 6458 59
02506-D1 6 3. 175 40 62 10 98 51 48 6.6 M6 4. 8x1 2015 5879 75
02508-D1 8 3. 175 40 62 10 116 51 48 6.6 M6 4. 8x1 2009 5867 76
02510-C1 10 3. 175 40 62 12 122 51 48 6.6 M6 3. 8x1 1638 4633 61
03205-C1 32 5 3.175 50 80 12 82 65 62 9 M6 3. 8x1 1839 6026 71
03206-D1 6 3.175 50 80 12 99 65 62 9 M6 4. 8x1 2247 7608 90
03208-D1 8 3. 969 50 80 12 126 65 62 9 M6 4. 8x1 3015 9181 92
03210-C1 31 10 3. 969 50 80 13 122 65 62 9 M6 3. 8x1 2460 7255 75
03220-B1 20 3. 969 50 80 12 160 65 62 9 M6 2. 8x1 1907 5482 58
04005-C1 40 5 3.175 63 93 15 85 78 70 9 M8 3. 8x1 2018 7589 83
04006-D1 6 3.175 63 93 14 98 78 70 9 M6 4. 8x1 2467 9583 106
04008-D1 8 3. 969 63 93 14 125 78 70 9 M6 4. 8x1 3327 11491 no
04010-C1 38 10 6. 350 63 93 14 123 78 70 9 M8 3. 8x1 5035 13943 91
04020-B1 20 6. 350 63 93 14 162 78 70 9 M8 2. 8x1 3959 10715 73
05005-C1 50 5 3.175 75 110 15 85 93 85 11 M8 3. 8x1 2207 9542 96
05010-C1 10 6. 350 75 110 18 138 93 85 11 M8 3. 8x1 5638 17852 109
05012-C1 48 12 6. 350 75 110 18 147 93 85 11 M8 3. 8x1 5632 17836 no
05020-C1 20 6. 350 75 110 18 218 93 85 11 M8 3. 8x1 5749 18485 116
06310-C1 61 10 6. 350 90 125 18 140 108 95 11 M8 3. 8x1 6343 23308 130
06316-C1 16 6. 350 90 125 18 191 108 95 13.5 M8 3. 8x1 632 23262 136
06320-C1 20 7.144 95 135 20 226 115 100 13.5 M8 3. 8x1 7493 26424 142
08010-C1 96 10 6. 350 105 145 20 140 125 110 13.5 M8 3. 8x1 6980 29563 149
08020-C1 20 9. 525 125 165 25 230 145 130 13.5 M8 3. 8x1 12145 43598 174
10020-C1 77 20 12.7 150 202 30 244 176 155 17.5 M8 3. 8x1 19633 71408 208
What are ball screws used for?

Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. They are also used in machine tools, robots and precision assembly equipment.
