Nidec Gearbox High Precision Planetary Helical Gear Stepper Servo Motor Reducer VRB

Brand Name : Shimpo

Model Number : VRB

Certification : CE，ISO

Place of Origin : Japan

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs per month

Delivery Time : Negotiation

Packaging Details : Standard export carton packing, wooden case, foam board inside for protection.

Scope of application : Industrial automation

Model number : VRB-090C-7-K3-28HB22

Flange : 090C

Flange size : 28HB22

Gear type : Helical gear reducer

Layout form : Coaxial type

Processing customization : Non-machining customization

Sample or stock : Stock

Contact Now

Nidec Gearbox High Precision Planetary Helical Gear Stepper Servo Motor Reducer VRB

1. High precision: back clearance less than 3 minutes (0.05°), positioning, can give full play to the performance of the servo motor.


2. Quiet: The use of helical gear to achieve smooth and quiet operation.


3. High rigidity and high torque: The use of integral ball bearings greatly improves rigidity and torque.


4. Flange, shaft sleeve mode: can be installed on any motor in the world.


5. High load: The main bearing adopts conical needle roller bearings to achieve high load capacity.


6. Output shaft, connector: simplifies the connection with the equipment, and can be installed on any motor in the world.


7. No grease leakage: The use of high viscosity, not easy to separate grease, effectively prevent grease leakage.


8. High protection: The IP65 protection level is adopted, which can be used in any harsh environment.


9. Long life and easy maintenance: there is no need to replace the grease within the service life of the product for 20,000 hours, and the use is more worrying.

Frame

size

 Stage Ratio Nominal output torque Maximum output torque Emergency stop torque Nominal input speed Maximum input speed Permitted radial load Permitted axial load
[Nm] [Nm] [Nm] [rpm] [rpm] [N] [N]

090

1

Single

 3 50 80 200 3000 6000 810 930
4 75 125 250 3000 6000 890 1100
5 75 125 250 3000 6000 960 1200
6 75 125 250 3000 6000 1000 1300
7 75 125 250 3000 6000 1100 1300
8 75 125 250 3000 6000 1100 1400
9 50 80 200 3000 6000 1200 1500
10 50 80 200 3000 6000 1200 1600
Double 15 50 80 200 3000 6000 1400 1900
16 75 125 250 3000 6000 1400 1900
20 75 125 250 3000 6000 1500 2100
25 75 125 250 3000 6000 1600 2200
28 75 125 250 3000 6000 1700 2200
30 50 80 200 3000 6000 1700 2200
35 75 125 250 3000 6000 1800 2200
40 75 125 250 3000 6000 1900 2200
45 50 80 200 3000 6000 2000 2200
50 75 125 250 3000 6000 2100 2200
60 75 125 250 3000 6000 2200 2200
70 75 125 250 3000 6000 2300 2200
80 75 125 250 3000 6000 2400 2200
90 50 80 200 3000 6000 2400 2200
100 50 80 200 3000 6000 2400 2200


Frame

size

Stage

Ratio

 Maximum radial load

Maximum

axial load

Weight

 Moment of inertia (≦φ8) Moment of inertia (≦φ14)

Moment of inertia (≦φ19)

 Moment of inertia (≦φ28)
[N] [N] [kg] [kgcm2] [kgcm2] [kgcm2] [kgcm2]

090

1

Single

 3 2400 2200 3.7 - 0.72 1.2 3.2
4 2400 2200 - 0.49 0.95 3.0
5 2400 2200 0.40 0.86 2.9
6 2400 2200 - 0.36 0.82 2.8
7 2400 2200 - 0.32 0.79 2.8
8 2400 2200 - 0.31 0.77 2.8
9 2400 2200 - 0.29 0.76 2.8
10 2400 2200 - 0.29 0.75 2.8

Double

 15 2400 2200 4.2 0.13 0.28 0.72 -
16 2400 2200 0.15 0.30 0.74 -
20 2400 2200 0.13 0.28 0.72 -
25 2400 2200 0.12 0.28 0.71 -
28 2400 2200 0.14 0.29 0.73 -
30 2400 2200 0.10 0.25 0.70 -
35 2400 2200 0.12 0.27 0.71 -
40 2400 2200 0.099 0.25 0.70 -
45 2400 2200 0.12 0.27 0.71 -
50 2400 2200 0.098 0.25 0.69 -
60 2400 2200 0.098 0.25 0.69 -
70 2400 2200 0.097 0.25 0.69 -
80 2400 2200 0.097 0.25 0.69 -
90 2400 2200 0.097 0.25 0.69 -
100 2400 2200 0.097 0.25 0.69 -

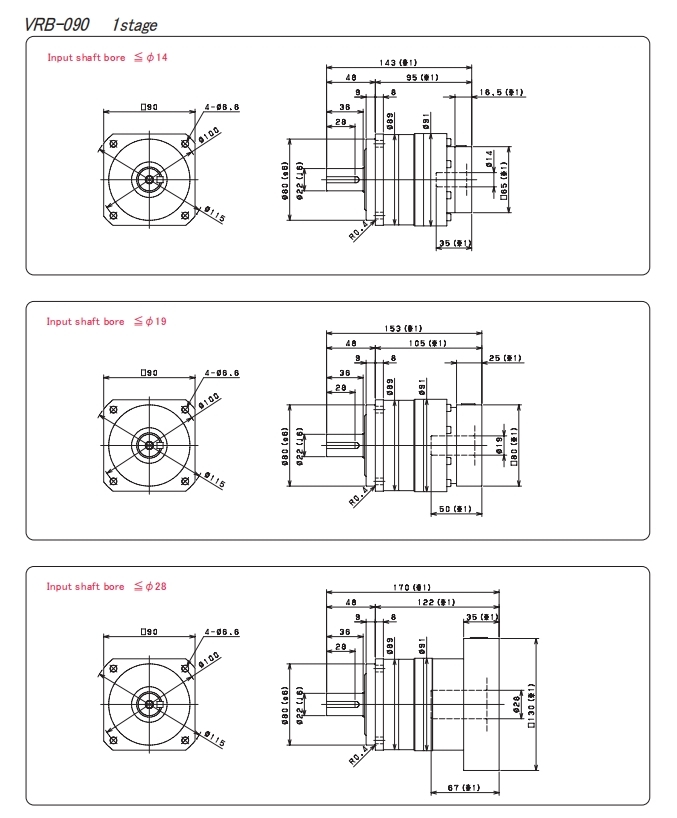

Nidec Gearbox High Precision Planetary Helical Gear Stepper Servo Motor Reducer VRB

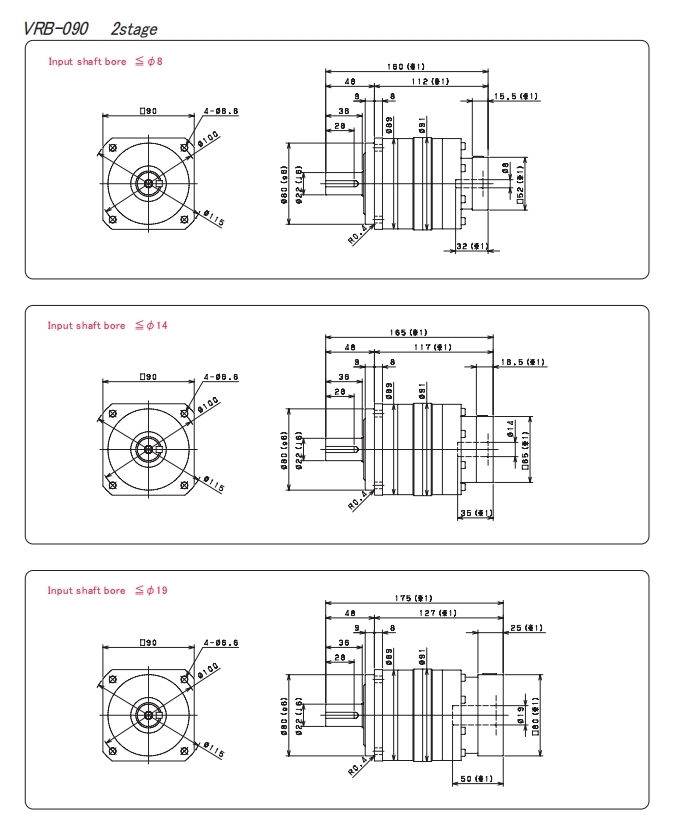

Nidec Gearbox High Precision Planetary Helical Gear Stepper Servo Motor Reducer VRB

Nidec Gearbox High Precision Planetary Helical Gear Stepper Servo Motor Reducer VRB
